eplusout.svg¶
This is a Scalable Vector Graphics (SVG) file that shows a diagram of the HVAC system from the inputs of the simulation. The diagram is generated for most HVAC systems but a few valid HVAC configurations cannot be displayed correctly. The SVG file is generated by the HVAC Diagram utility that is included with EnergyPlus and is run automatically when using EP-Launch.
The SVG format is a graphics format that includes a descriptions of lines, boxes, text, etc. set in a two dimensional perspective. To learn more about the SVG format see:
http://www.w3.org/Graphics/SVG/
Several viewers are available so that you can view these files including plug-ins for Internet Explorer by Adobe and Corel. The Adobe SVG plug in can be found at:
http://www.adobe.com/svg/viewer/install/
But many different viewers are available and links are shown at:

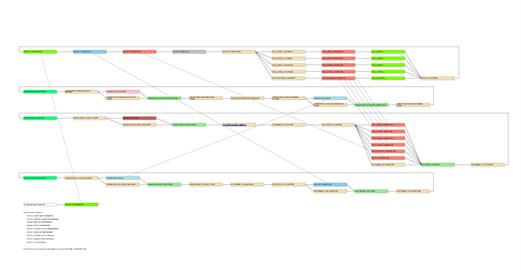

An example of a diagram generated by HVAC Diagram is shown
!

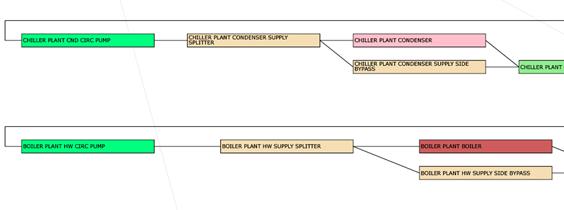

A close up of one part of this diagram is shown below
!
The SVG file format is an XML based format so it is text based. The diagram shown above is shown below in text (reduced).
\<?xml version = "1.0" standalone = "no"?>
\<!DOCTYPE svg>
\<svg width = "250mm" height = "200mm" viewBox = "0 0 3200 1500" xmlns:ev = "http://www.w3.org/2001/xml-events" xmlns:xlink = "http://www.w3.org/1999/xlink" xmlns = "http://www.w3.org/2000/svg" preserveAspectRatio = "xMidYMid meet" zoomAndPan = "magnify">
\<g font-family = "Verdana" font-size = "8">
\<line x1 = " 2400" y1 = " 470" x2 = " 2100" y2 = " 30" style = "stroke:linen ;"/>
\<line x1 = " 2400" y1 = " 510" x2 = " 2100" y2 = " 70" style = "stroke:linen ;"/>
\<line x1 = " 2400" y1 = " 550" x2 = " 2100" y2 = " 110" style = "stroke:linen ;"/>
\<line x1 = " 2400" y1 = " 590" x2 = " 2100" y2 = " 150" style = "stroke:linen ;"/>
\<line x1 = " 2400" y1 = " 630" x2 = " 2100" y2 = " 190" style = "stroke:linen ;"/>
\<line x1 = " 2400" y1 = " 670" x2 = " 900" y2 = " 30" style = "stroke:linen ;"/>
\<line x1 = " 2050" y1 = " 830" x2 = " 600" y2 = " 30" style = "stroke:linen ;"/>
\<line x1 = " 300" y1 = " 30" x2 = " 550" y2 = " 950" style = "stroke:linen ;"/>
\<line x1 = " 800" y1 = " 790" x2 = " 2050" y2 = " 310" style = "stroke:linen ;"/>
\<rect x = " 200" y = " 940" width = " 200" height = " 20" style = "fill:snow; stroke: Black;"/> 1
\<text x = " 202" y = " 953" startOffset = "0">OUTSIDE AIR INLET NODE LIST\</text>
\<rect x = " 2300" y = " 20" width = " 200" height = " 20" style = "fill:chartreuse; stroke: Black;"/> 2
\<text x = " 2302" y = " 33" startOffset = "0">ZN1_S_SPACE_1\</text>
\<rect x = " 1400" y = " 20" width = " 200" height = " 20" style = "fill:wheat; stroke: Black;"/> 7
\<text x = " 1402" y = " 33" startOffset = "0">VAV SYS 1 ZONE SPLITTER\</text>
\<rect x = " 1700" y = " 20" width = " 200" height = " 20" style = "fill:wheat; stroke: Black;"/> 8
\<text x = " 1702" y = " 33" startOffset = "0">ZN1_S_SPACE_1 VAV REHEAT\</text>
\<reduced>
\<line x1 = " 1600" y1 = " 30" x2 = " 1700" y2 = " 30" style = "stroke: Black;"/>
\<line x1 = " 1600" y1 = " 30" x2 = " 1700" y2 = " 70" style = "stroke: Black;"/>
\<line x1 = " 1600" y1 = " 30" x2 = " 1700" y2 = " 110" style = "stroke: Black;"/>
\<line x1 = " 1600" y1 = " 30" x2 = " 1700" y2 = " 150" style = "stroke: Black;"/>
\<line x1 = " 1600" y1 = " 30" x2 = " 1700" y2 = " 190" style = "stroke: Black;"/>
\<line x1 = " 1900" y1 = " 30" x2 = " 2000" y2 = " 30" style = "stroke: Black;"/>
\<line x1 = " 1900" y1 = " 70" x2 = " 2000" y2 = " 70" style = "stroke: Black;"/>
\<line x1 = " 1900" y1 = " 110" x2 = " 2000" y2 = " 110" style = "stroke: Black;"/>
\<reduced>
\<text x = " 200" y = " 1000" startOffset = "0">Unused Non-Parent Objects:\</text>
\<text x = " 220" y = " 1020" startOffset = "0">VAV SYS 1 SUPPLY AIR TEMP MANAGER\</text>
\<text x = " 220" y = " 1040" startOffset = "0">VAV SYS 1 HEATING COIL AIR TEMP MANAGER\</text>
\<text x = " 220" y = " 1060" startOffset = "0">CHILLER PLANT CHW TEMP MANAGER\</text>
\<text x = " 220" y = " 1080" startOffset = "0">BOILER PLANT HW TEMP MANAGER\</text>
\<text x = " 220" y = " 1100" startOffset = "0">VAV SYS 1 COOLING COIL AIR TEMP MANAGER\</text>
\<text x = " 220" y = " 1120" startOffset = "0">VAV SYS 1 MIXED AIR TEMP MANAGER\</text>
\<text x = " 220" y = " 1140" startOffset = "0">VAV SYS 1 COOLING COIL CONTROLLER\</text>
\<text x = " 220" y = " 1160" startOffset = "0">VAV SYS 1 HEATING COIL CONTROLLER\</text>
\<text x = " 220" y = " 1180" startOffset = "0">VAV SYS 1 OA CONTROLLER\</text>
\<text x = " 200" y = " 1220" startOffset = "0">
The following are not supported: objects related to controls, DIRECT AIR, or PURCHASED AIR\</text>
\</g>
\</svg>
